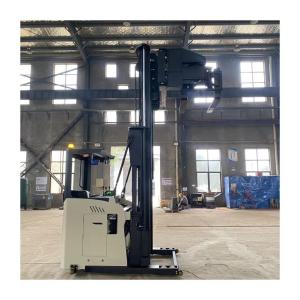

1. It has a very high lifting height up to 7m. 2. Can be used for narrow road handling, the fork can be moved forward to the left and right, the body does not have to move.
| Standard | | | | |||
| 1.1 | Manufacturer | | KAD | |||
| 1.2 | Model | | VNA10 VNA15 VNA20 | |||
| 1.3 | Power type | | Battery | |||
| 1.4 | Operation type | | Sit-down | |||
| 1.5 | Rated capacity | Q(kg) | 1000 | |||
| 1.6 | Load center | c(mm) | 600 | |||
| 1.7 | Front overhang | x(mm) | 670 | |||
| 1.8 | Wheelbase | y(mm) | 1700 | |||
| Weight | | | | |||
| 2.1 | Service weight(incl. battery) | | 5520 | |||
| Tire | | | | |||
| 3.1 | Wheel type,drive side/load side | | PU | |||
| 3.2 | Tyre size,load side | mm | 140 ×127 | |||
| 3.3 | Tyre size,drive side | mm | p380 ×165 | |||
| 3.4 | Balance wheel size | mm | $204×76 | |||
| 3.5 | Wheel quantity,front/rear(x= drive) | | 4/1x+2 | |||
| 3.6 | Wheel tread,drive side | b10(mm) | 726 | |||
| 3.7 | Wheel tread,load side | b11(mm) | 1280 | |||
| Dimension | | | | |||
| 4.1 | Height of mast closed | h1(mm) | 4318 | |||
| 4.2 | Full free lifting height | h2(mm) | 3255 | |||
| 4.3 | The Max. lifting height | h3(mm) | 7500 | |||
| 4.4 | Height of mast with backrest | h4(mm) | 8550 | |||
| 4.5 | Overhead guard height | h6(mm) | 2300 | |||
| 4.6 | Station board height | h7(mm) | 355 | |||
| 4.7 | Overall length | l1(mm) | 2985 | |||
| 4.8 | Overall width | b1(mm) | 1550 | |||
| 4.9 | fork dimentions | l/e/s(mm) | 1200/125/50 | |||
| 4.10 | Installation level | | ll Level A Model | |||
| 4.11 | Width across forks | b5(mm) | 265~760 | |||
| 4.12 | minimum guound clearance | m1(mm) | 40 | |||
| 4.13 | Stacking channel width (pallet 1000x1000) | Ast(mm) | 1600 | |||
| 4.14 | Stacking channel width (pallet 1000x1200) | Ast(mm) | 1650 | |||
| 4.15 | Spacing of rack beams | mm | 1700 | |||
| 4.16 | Width of main aisle | mm | 3800 | |||
| 4.17 | Turning radius | Wa(mm) | 1980 | |||
| Function | | | | |||
| 5.1 | Drive speed, load/unload | km/h | 7.5/8 | |||
| 5.2 | Lift speed, load/unload | mm/s | 200/250 | |||
| 5.3 | Lower speed, load/unload | mm/s | 340/340 | |||
| 5.4 | Brake type | | Mechanical | |||
| Driving | | | | |||
| 6.1 | Driving motor power(S2-60min) | kw | 5.5 AC | |||
| 6.2 | Lifting motor power(S315%) | kw | 8.6 AC | |||
| 6.3 | Battery voltage/capacity | V/Ah | 24/560 | |||
| 6.4 | Battery weight | kg | 740 | |||
| 6.5 | Steering system | | EPS | |||
| Other | | | | |||
| 7.1 | Battery replace method | | Side pull type | |||
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas if become our distributor
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet.
We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
